| Specification | Details |
|---|---|
| Size Range | 50mm to 1200mm |
| Temperature Range | Up to 250°C |
| Pressure Class | Min. 0.5 Bar – Max. 10 Bar |
| Design & Manufacturer | MSS SP – 81 |
| Valve Face To Face Dimension | MSS SP – 81 |
| Inspection & Testing | MSS SP – 81 |
| Body Material | C.I / S.G.I / D.I / WCB / CF8 / CF8M / CF3M / SS 316 |
| Seat Materials | NBR / EPDM / VITON / PTFE |
| Disc Material | SS 304 / SS 306 / SS 316L / MS / DUPLEX 2205 |
| Body Style | Single Pc, Semi Lug, Full Lug, Double Flange, Wafer Type |
| Flange Drilling | ANSI B 16.5 (150#), EN 1092-2 PN 10 |
| Leakage Class | Class – VI |
| Media | Mining & Mineral Processing, Pulp & Paper, Cement, Water, Sugar, Carbon Black, Material Handling, Fossil Fuel Power, Slurry |
| Optional Body Type | Metal to Metal Class 4 & 6 |

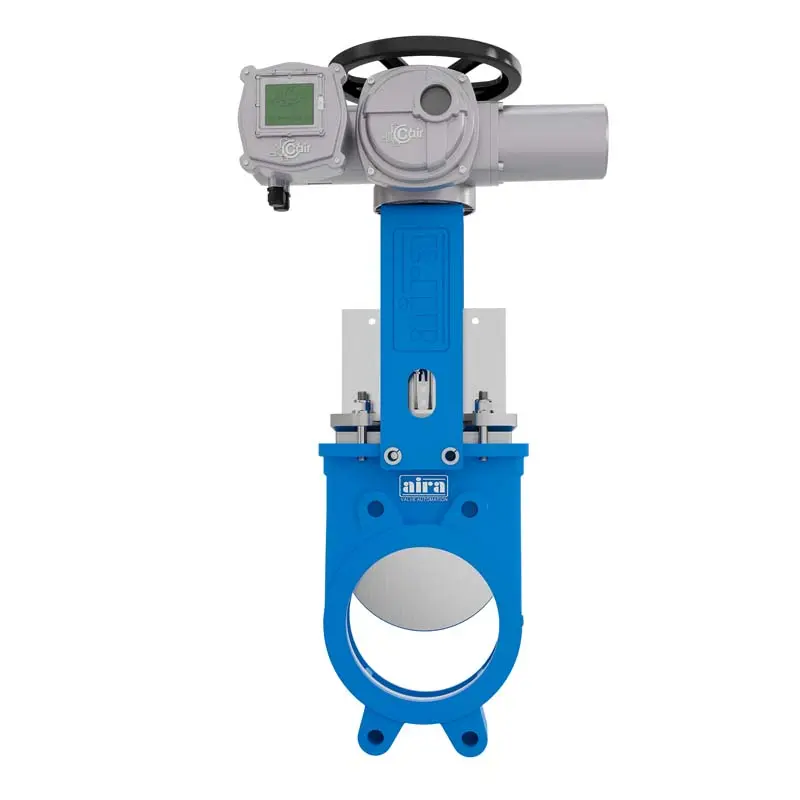

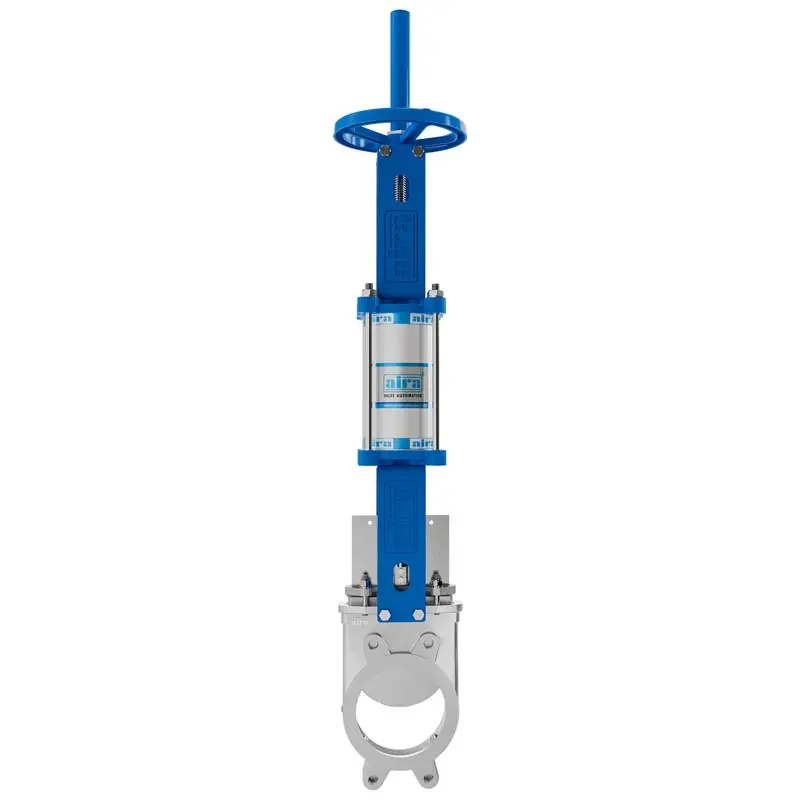

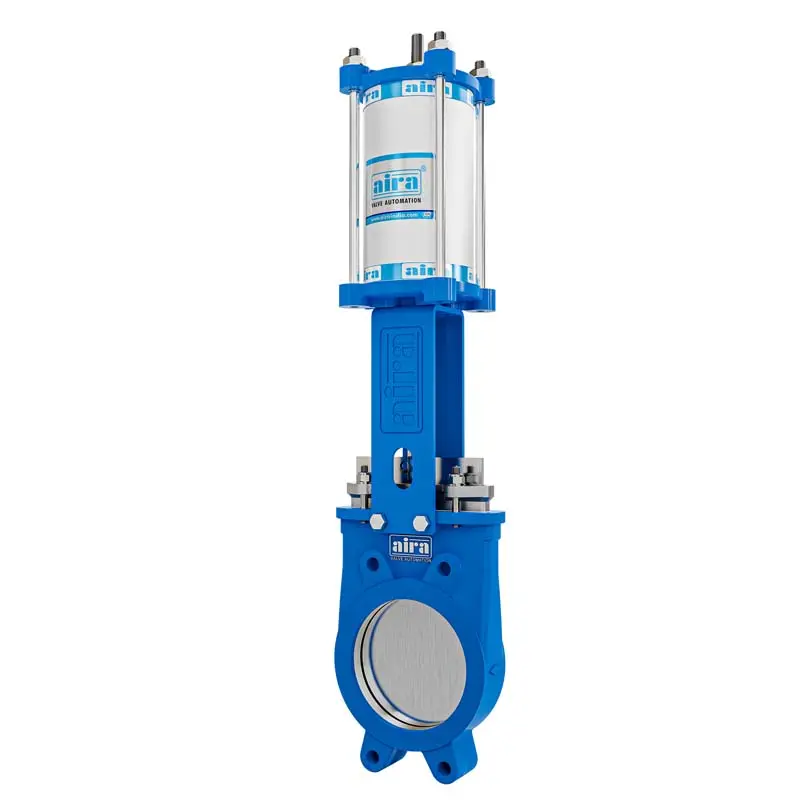

The Uni-Directional Knife Edge Gate Valve is specifically designed for applications requiring precise flow control in industries dealing with slurry, bulk materials, and high-pressure systems. With its unique knife edge design, this valve effectively cuts through slurries, thick liquids, and solid particles, ensuring reliable shut-off and minimal wear.
Constructed with a robust body available in materials such as C.I, S.G.I, D.I, WCB, CF8, CF8M, and SS 316, this valve is durable and resistant to corrosion and abrasion. The valve comes in a variety of body styles including single piece, semi-lug, full lug, double flange, and wafer type, offering versatile installation options.
With a size range of 50mm to 1200mm and a temperature range of up to 250°C, the Uni-Directional Knife Edge Gate Valve is perfect for use in industries like mining, mineral processing, pulp & paper, cement, water treatment, sugar, and carbon black applications. Its metal-to-metal seat option offers Class 4 & 6 leakage sealing for demanding operational environments.
