| Specification | Details |
|---|
| Design & Manufacturer | API 609 Category “B”, BS EN 593 |
| Valve Face-To-Face | API 609, BS EN 558 |
| Flange Standard | ANSI B16.5, 16.47 (150#/300#/600#) |
| Inspection & Testing | FCI-70-2, B16.104, ISO 5208, BS EN 12266-1 |
| Pressure Temperature Rating | ASME B16.34 |
| Top Mounting Standard | ISO 5211 |
| Stem Square Drive | ISO 5211 |
| Seat Leakage Class | IV / V / VI |
| Top Flange Drilling | ASME B16.5 / 16.47 (Class 150) |
| End Connection | Wafer Type, Double Flange (D/F) – AWWA C504, IS 13095, PN-10 to PN-40, 150# to 600# |
| Size Range | 1.1/2″ to 24″ (Above 24″ available on request) (40MM to 600MM) |
| Temperature Range | Up to 400°C |
| Pressure Class | 150#, 300#, 600#, PN-10, PN-16, PN-20, PN-25, PN-40 |
| Media | Water, Oil, Steam, Air, Gas, Chemical, Vacuum |
| Leakage Class | Class VI as per ANSI B16.104 |
| Body Material | CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX (4A, 5A, 6D), SUPER DUPLEX, ALLOY 20 |
| Disc Material | CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX (4A, 5A, 6D), SUPER DUPLEX, ALLOY 20 |
| Seat Material | SS 304, SS 304L, SS 316, SS 316L, SS 304 + STELLITE 6, SS 316 + STELLITE 6, SS 316 + STELLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A |
| Certification | CE Approved, SIL3 Approved, Fire Safe Design Approved |

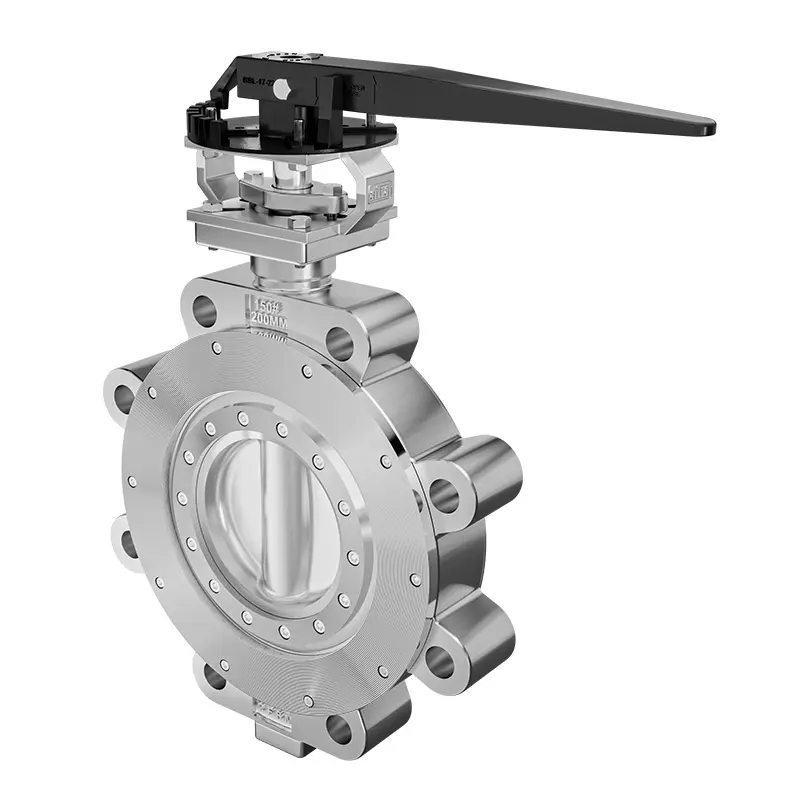

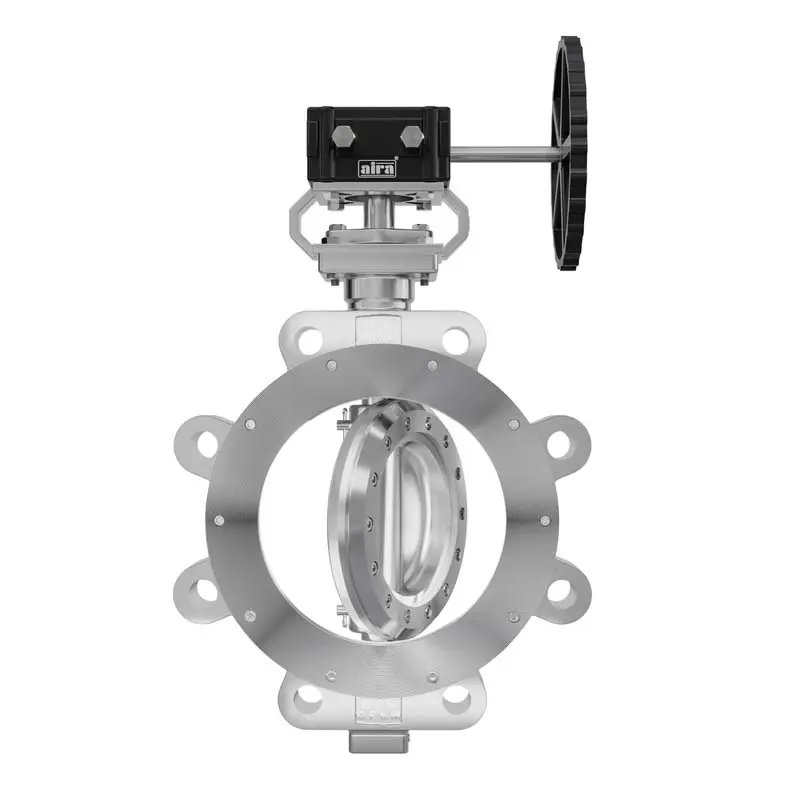

The aira Triple Offset Lug Type Butterfly Valve is engineered for high performance and reliability in demanding applications.
1 – Triple Offset Design: Provides excellent sealing and minimizes friction, ensuring a tight shut-off and reducing torque requirements.
2 – Lug Style: Designed with integrated lugs for easy mounting and dismounting between flanges, facilitating straightforward installation and maintenance.
3 – Robust Construction: Built from high-quality materials to endure extreme conditions and high pressures.
4 – Enhanced Sealing: Advanced sealing technology minimizes leakage and enhances operational reliability.
5 – Versatile Use: Ideal for various industrial applications, including water treatment, chemical processing, and power generation.

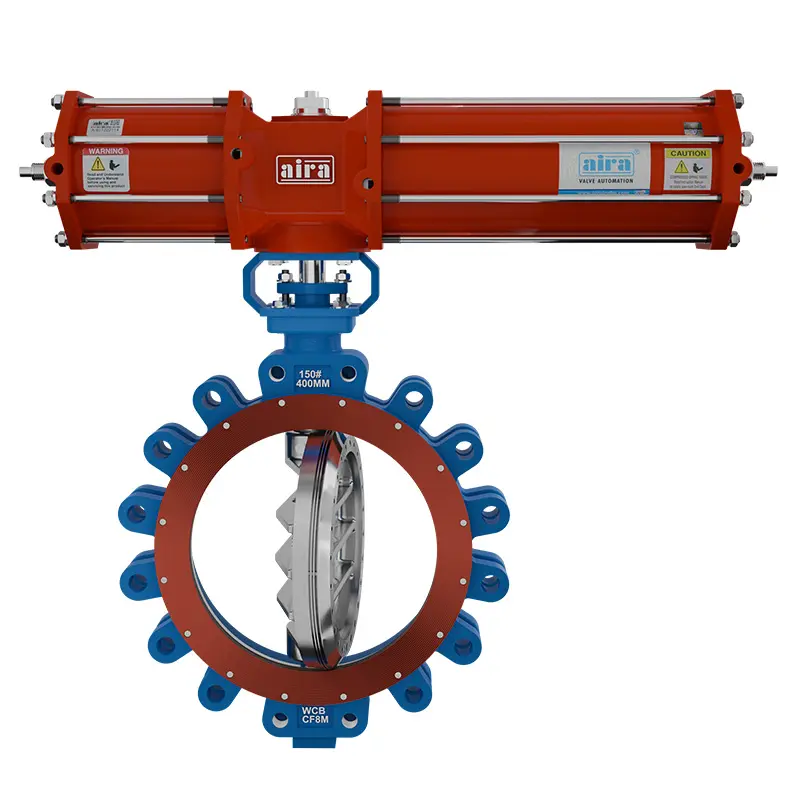

For your ease and safety, aira euro has manufactured a Pneumatic Rotary Actuator Operated Triple Offset Lug Type Butterfly Valve with Fire safe design to prevent accidents in your work area.
Materials:
We use ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M / CF3M casting material for Body, AISI 410 / 304 / 316 for Shaft, ASTM A 351 Gr. CF8 / CF8M / CF3M for Disc, and Metal to Metal / EPDM material for Seat.
Specialty:
This valve is available in 1.½” to 48” in size can easily sustain pressure up to 10 BAR and temperature up to 120°C in EPDM material and 300°C in Metal to Metal. It comes up with VI leakages as per ANSI B 16, 16.104, and Lug type End connections.
Where to use:
These valves are useful to control the flow of Oil/ Gas/ Steam/ Water/ Air/ Chemical & Vacuum. So it is very useful in Oil refineries, Petro- Chemical Plants, Gas Plants, etc.
The aira Triple Offset Lug Type Butterfly Valve is engineered for high performance and reliability in demanding applications.
1 – Triple Offset Design: Provides excellent sealing and minimizes friction, ensuring a tight shut-off and reducing torque requirements.
2 – Lug Style: Designed with integrated lugs for easy mounting and dismounting between flanges, facilitating straightforward installation and maintenance.
3 – Robust Construction: Built from high-quality materials to endure extreme conditions and high pressures.
4 – Enhanced Sealing: Advanced sealing technology minimizes leakage and enhances operational reliability.
5 – Versatile Use: Ideal for various industrial applications, including water treatment, chemical processing, and power generation.
For your ease and safety, aira euro has manufactured a Pneumatic Rotary Actuator Operated Triple Offset Lug Type Butterfly Valve with Fire safe design to prevent accidents in your work area.
Materials:
We use ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M / CF3M casting material for Body, AISI 410 / 304 / 316 for Shaft, ASTM A 351 Gr. CF8 / CF8M / CF3M for Disc, and Metal to Metal / EPDM material for Seat.
Specialty:
This valve is available in 1.½” to 48” in size can easily sustain pressure up to 10 BAR and temperature up to 120°C in EPDM material and 300°C in Metal to Metal. It comes up with VI leakages as per ANSI B 16, 16.104, and Lug type End connections.
Where to use:
These valves are useful to control the flow of Oil/ Gas/ Steam/ Water/ Air/ Chemical & Vacuum. So it is very useful in Oil refineries, Petro- Chemical Plants, Gas Plants, etc.
