| Specification | Details |
|---|
| Size Range | 1″ to 48″ (25MM to 1200MM) |
| Temperature Range | -25°C to 80°C (Depending on MOC) |
| Pressure Class | PN 6 / 10 / 20 & 25 |
| Body Type | Short Wafer Type Lug |
| Seat Type | Integrally moulded with the body (Renewable Seat on Request) |
| Flange Drilling | IS 6392 / EN 1092 – 1 / EN 1092 – 2 / ASME B 16.5 150# |
| Body Materials | S.G.I / C.I / D.I / WCB |
| Stem Materials | SS 304 / 316 / 410 / 17 – 4 PH / Super Duplex 2507 / 2205 |
| Seat Materials | NBR / EPDM |
| Disc Materials | S.G.I / CF8 / CF8M / CF3M / ASTM A – 995 |
| Seat Leakage | Tight Shut Off (Class VI) |
| Flange Drilling | ISO 5211 |
| Design and Manufacturer | API 609 Category A / IS : 13095 / BS EN 593 |
| Valve Face to Face Dimension | Short Wafer as per ISO 5752 TAB 5 / API 609 Category A ISO 5752 TAB 1 (BS 5155) |
| Flange Standard | ASME B16.5 / ASME B 16.47 Series “A” Class 150 |
| Inspection & Testing | API 598 / BS EN 12266 – 1 |
| End Connection | Wafer type double flange suit #150, Table ‘D’, Table ‘E’ & IS 6392 Table 11 (PN / PN 1.6) |

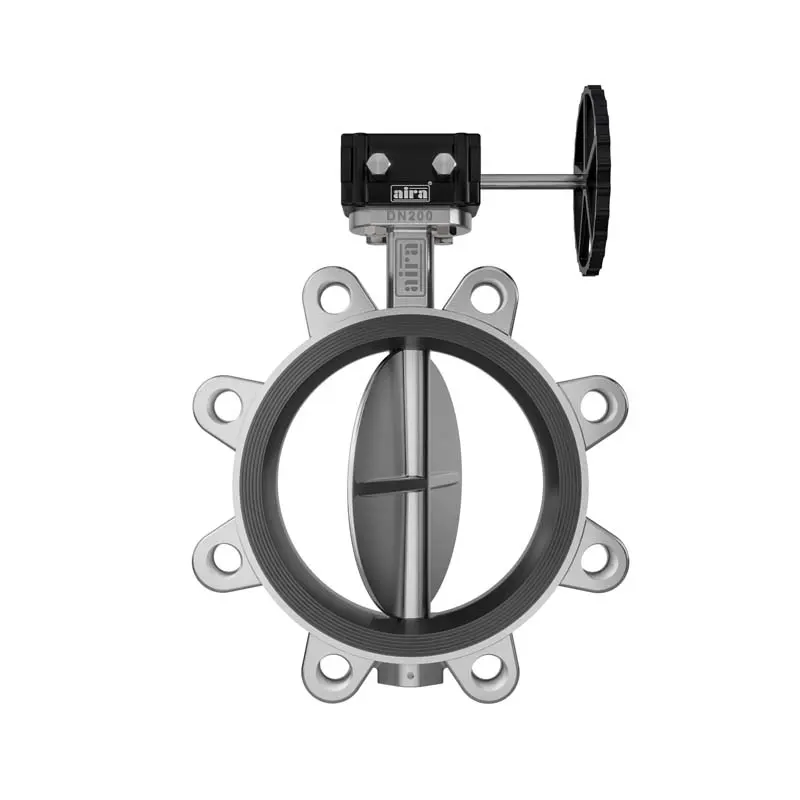

1 – Rubber Lining: Provides excellent sealing and protection against corrosion, enhancing durability and reducing leakage.
2 – Concentric Disc Design: Features a concentric disc arrangement for smooth operation and minimal friction.
3 – Lug Type: Equipped with lugs for easy mounting and removal, facilitating installation and maintenance.
4 – Durable Construction: Made from high-quality materials to withstand challenging conditions and extend the valve’s lifespan.
5 – Versatile Applications: Suitable for water treatment, HVAC systems, and other industrial processes requiring reliable flow control.
