| Specification | Details |
|---|---|
| Size Range | 15MM to 100MM |
| Temperature Range | PTFE 180°C / CFT 220°C |
| Pressure Class | Up to 10 BAR |
| Shutoff Rating | Tight Shut Off |
| Body Style | Y – Body (Screw End, Flange End, Triclover End) |
| Flange Drilling | 150# |
| Certification | CE Approved |
| Body Materials | S. S – 304, S. S – 316-L |
| Stem Materials | S. S – 304 |
| Seat Materials | PTFE, CFT, GFT |
| Plug Materials | S. S – 304 |
| Design Standard | Manufacturer Standard |
| Testing Standard | API – S98, PN10 |
| Face To Face | Manufacturer Standard |
| Leakage | As Per ANSI B16.104 Leakage Class VI Shut Off Tight / Bubble Tight |
| Applications | Air, Water, Oil, Gas, Steam & Chemicals |

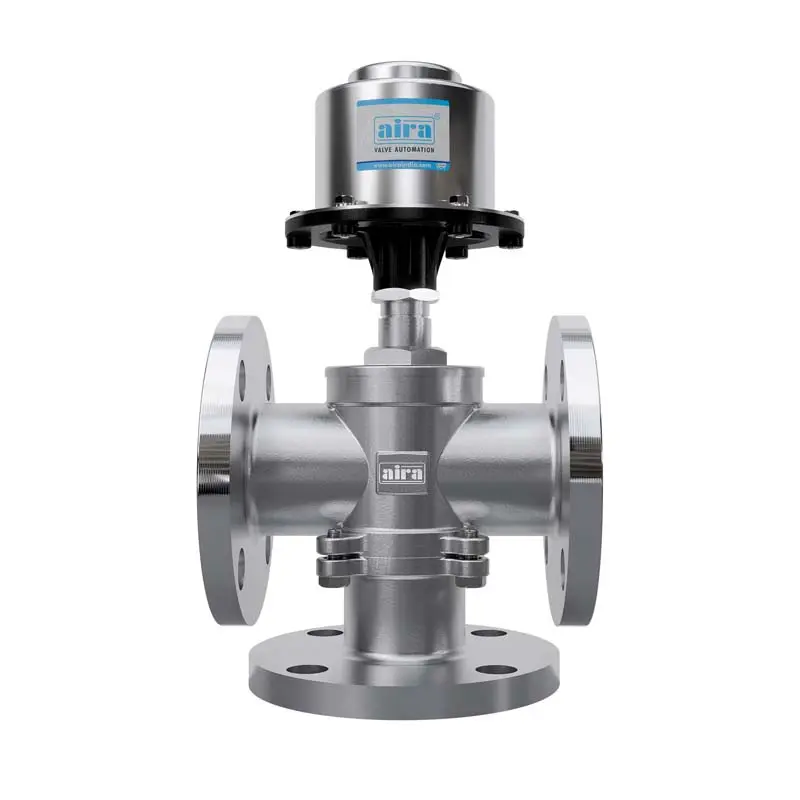

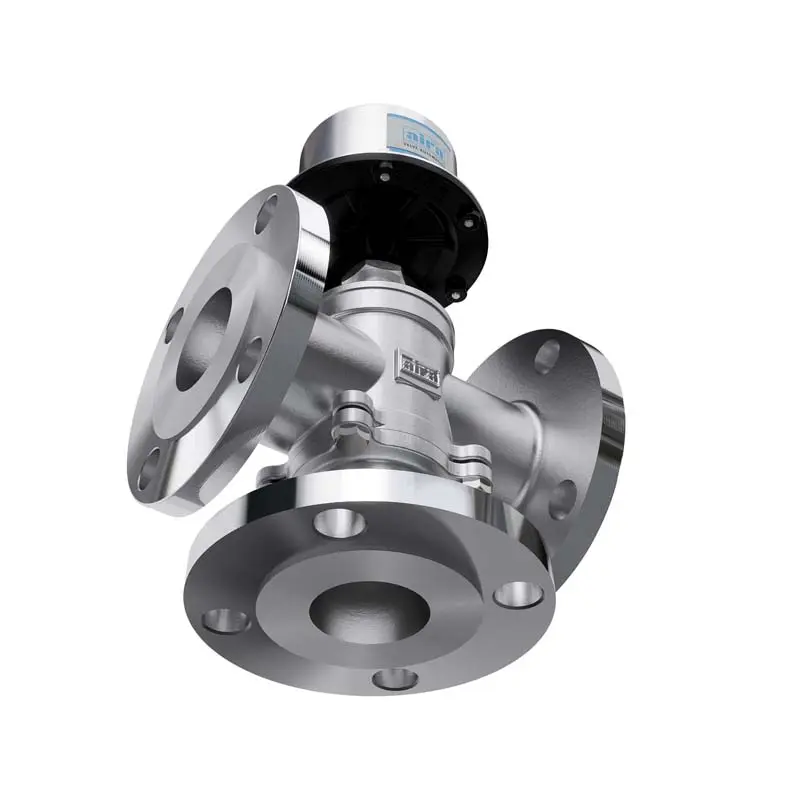

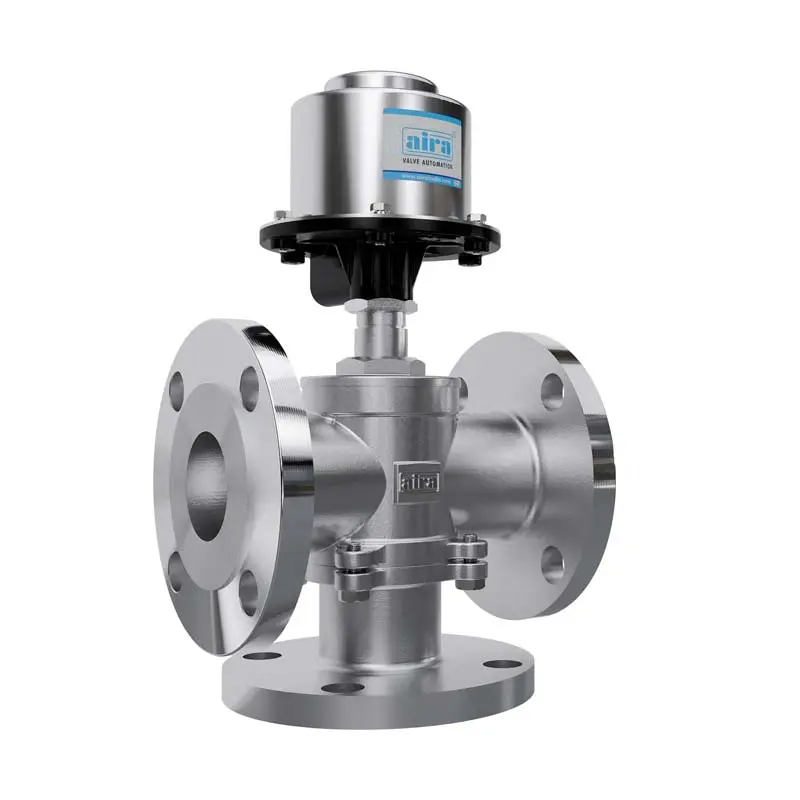

1 – Type Mixing & Diverting Valve.
2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision.
3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions.
4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability.
5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control.
6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance.
7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.
