| Specification | Details |
|---|---|
| Design & Manufacturer | BS 5351 Short Pattern |
| Valve Face to Face Dimension | ANSI B 16.5 |
| Inspection & Testing | API 598 / ISO 9393 – 2 / BS EN 12266-1:2003 |
| Valve Rating | Flanged 150# |
| Spark Test | 15 Kv DC to 40 Kv DC |
| Design Standard | BSEN ISO 17292, ASME B 16.34 |
| Shut Off Rating | VI Class |
| Size Range | 3” to 12” (80MM to 300MM) |
| Temperature Range | PFA: 230°C / Working – FEP: 160°C |
| Pressure Class | Up to 8 Kg/Cm² |
| Media | Chemical |
| Body Material | CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Fugitive Emissions | Yes |
| Leakage Class | Class VI |

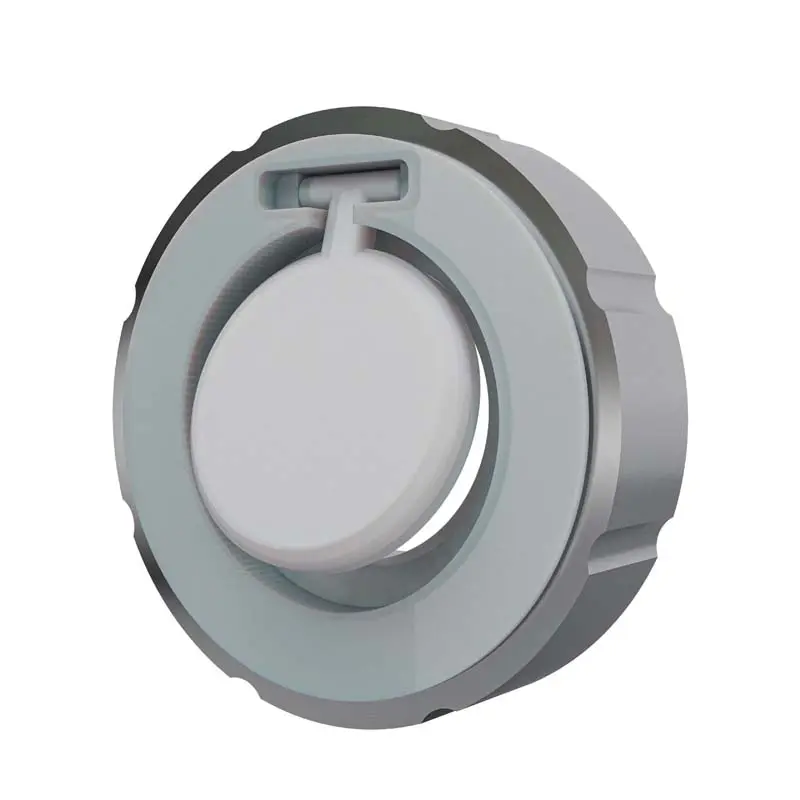

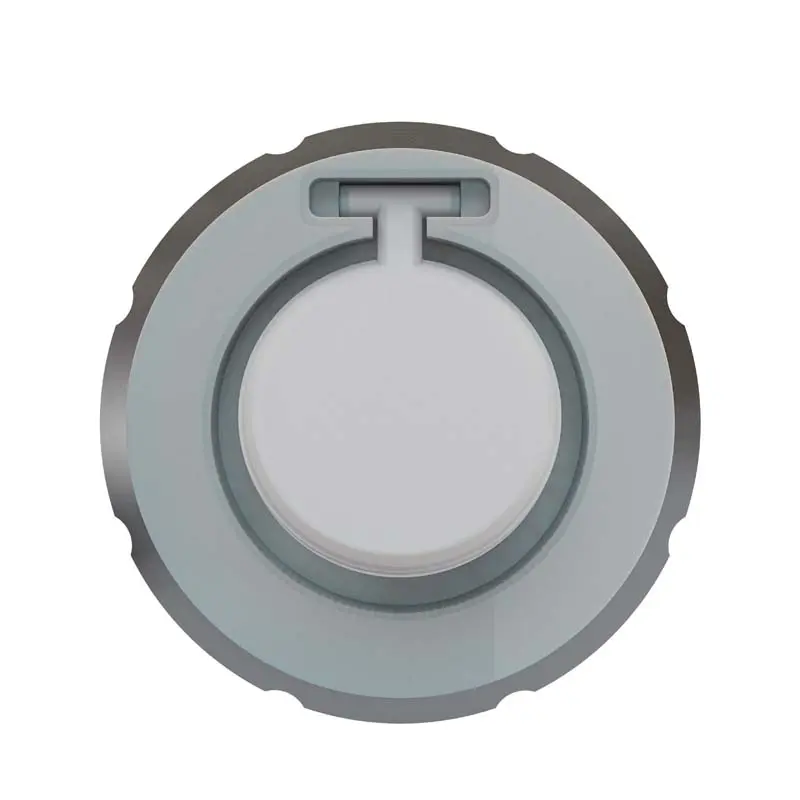

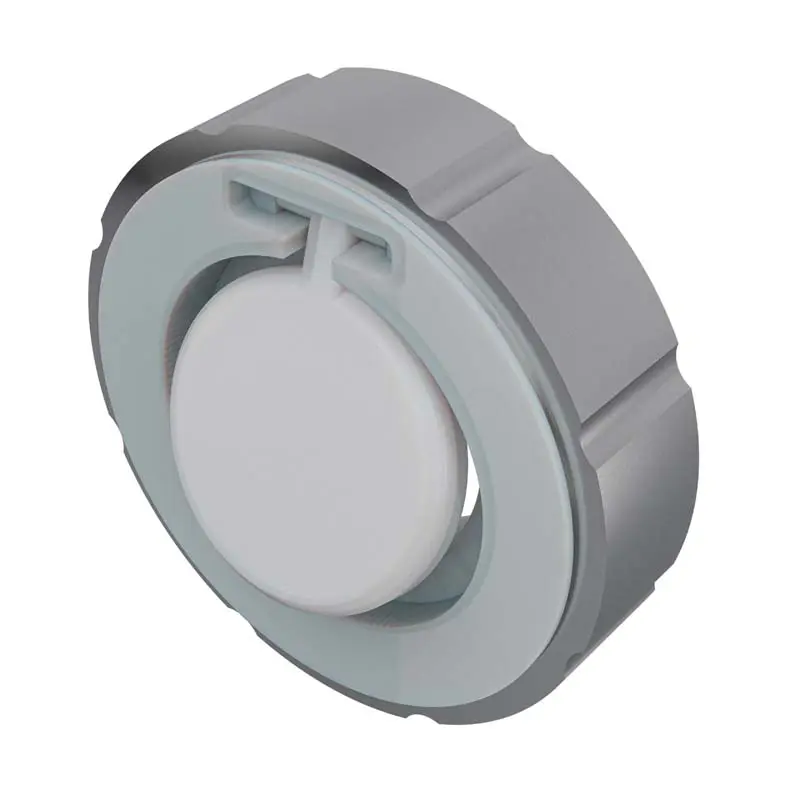

1. The valve is lined with Fluorinated Ethylene Propylene (FEP) or Perfluoroalkoxy (PFA), providing superior chemical resistance, non-stick properties, and protection against corrosion and abrasion.
2. The FEP/PFA lining offers exceptional protection against corrosive chemicals, making it ideal for aggressive media and harsh environments.
3. The corrosion-resistant lining and durable construction ensure the valve lasts longer, reducing the need for frequent replacements and maintenance.
