| Specification | Details |
|---|---|
| Size Range | 15MM to 80MM |
| Temperature Range | PTFE 180°C / CFT 220°C |
| Pressure Class | Up to 10 BAR |
| Shutoff Rating | Tight Shut off |

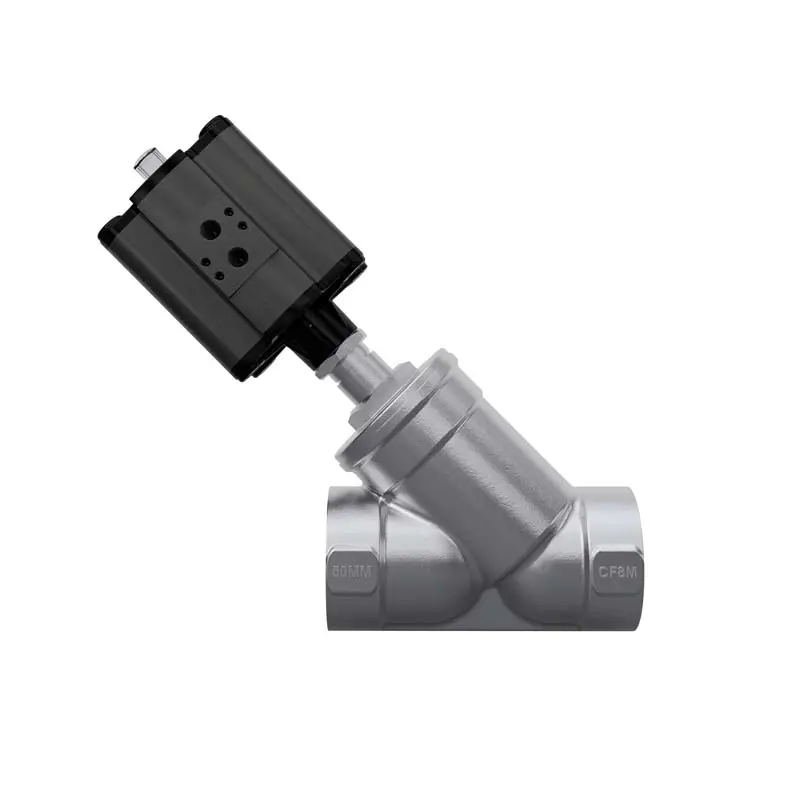

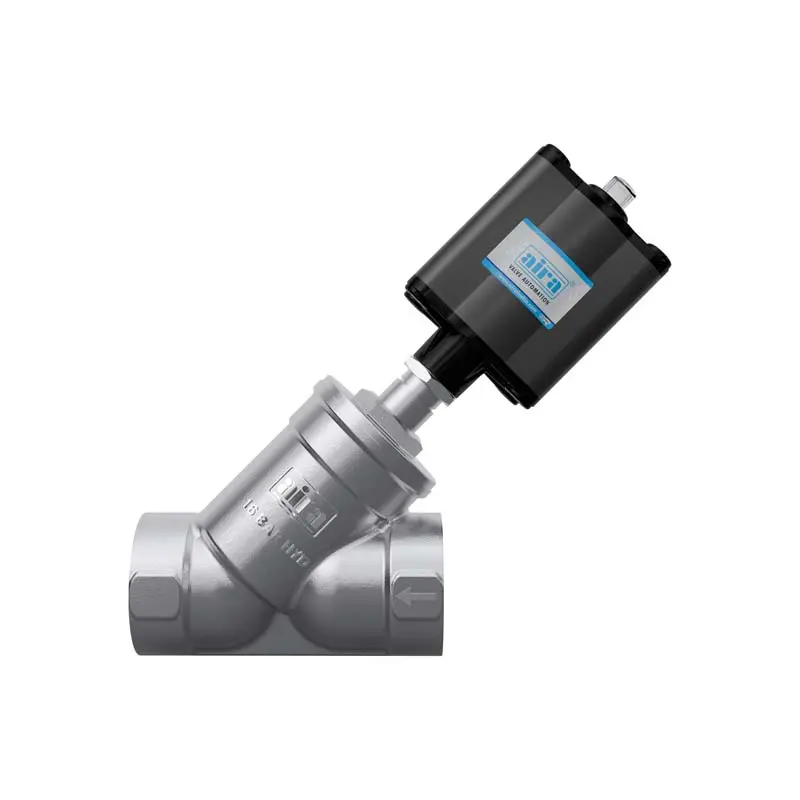

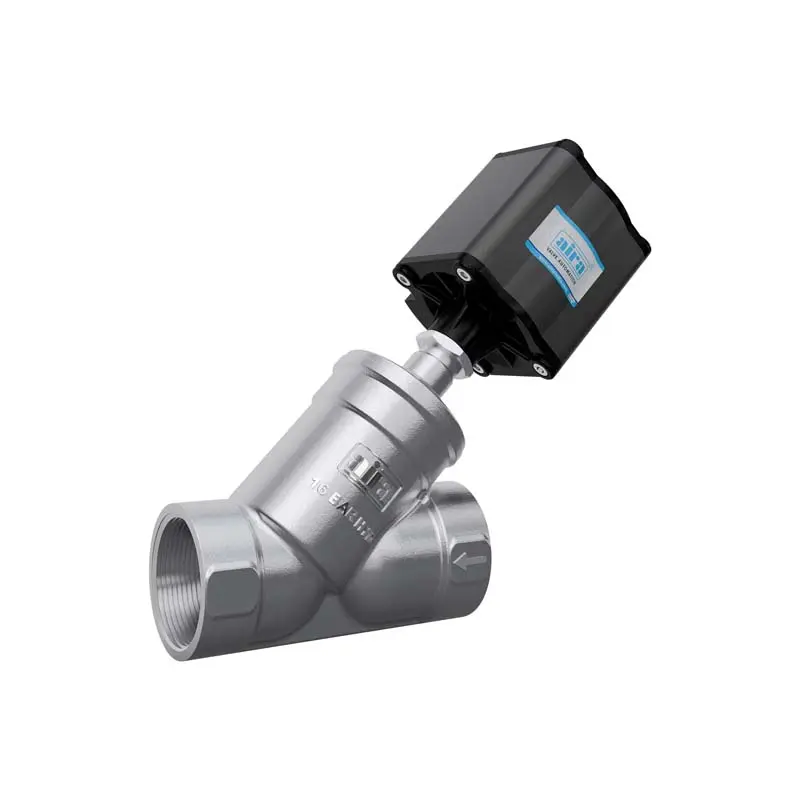

| Body Style | Y-Body – Screw End, Flange End, Triclover End |
| Flange Drilling | 150# |
| Certification | CE Approved |
| Body Materials | S.S – 304, S.S – 316-L |
| Stem Materials | S.S – 304 |
| Seat Materials | PTFE, CFT, GFT |
| Plug Materials | S.S – 304 |
| Design Standard | Manufacturer’s Standard |
| Testing Standard | API – S98, PN10 |
| Face to Face | Manufacturer’s Standard |
| Leakage | As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight |
| Applications | Air / Water / Oil / Gas / Steam & Chemical |
1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features.
2 – Best Choice For Speedy And Multiple Operation.
3 – Due To Angle Shape, Easy To Mount At Congested Place.
4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids.
5 – Full Flow With Negligible Pressure Drop.
