| Specification | Details |
|---|---|
| Basic Design | API 6D / BS EN 17292 |
| Face to Face Dimensions | API 6D / ASME B16.10 – 150#, 300#, 600# |
| End Connection | ASME B16.5 |
| Port Diameter | API 6D / BS EN 17292 |
| Size Range | 2″ to 20″ Flanged |
| Temperature Range | PTFE: Up to 180°C |
| Pressure Class | 150#, 300#, 600# |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, DUPLEX 2205, DUPLEX 2507, MONEL |
| Seat Material | PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, Nylon, Devlon, PEEK |
| Wall Thickness | ASME B16.34 / BS EN 17292 / BS EN-12516-2 |
| Fugitive Emission Testing | ISO 15848-1 |
| Fire Safe Testing | API 607 7th Edition |
| Media | Air, Water, Oil, Gas |
| Body Material | WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, Hast Alloy, Monel, Ductile Iron, S.G Iron, Inconel, LCB |
| Ball Material | CF8, CF8M, WCB + ENP, Hast Alloy, Duplex, Monel, CF3M |

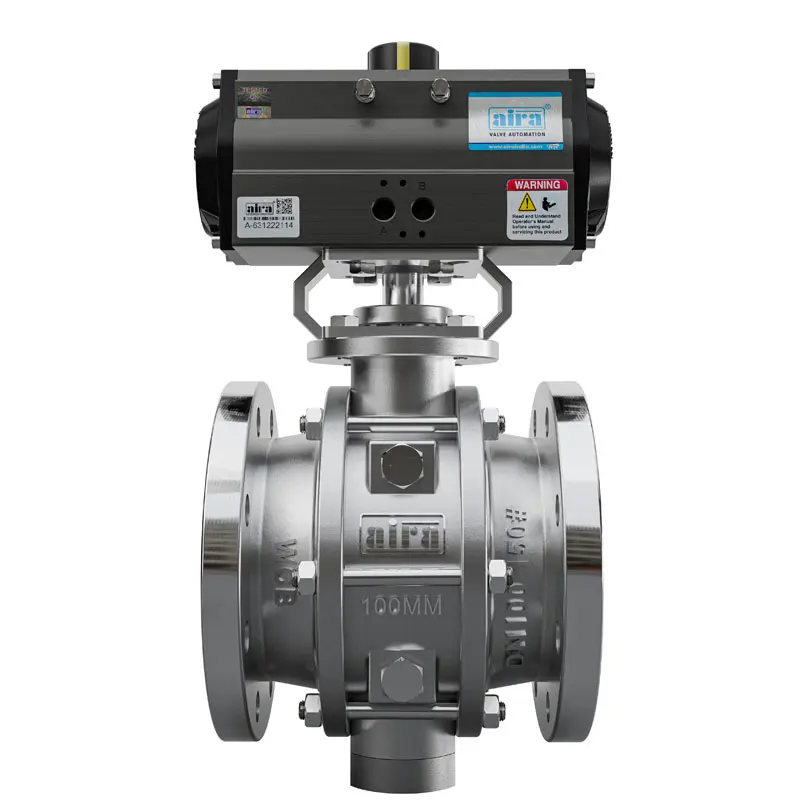

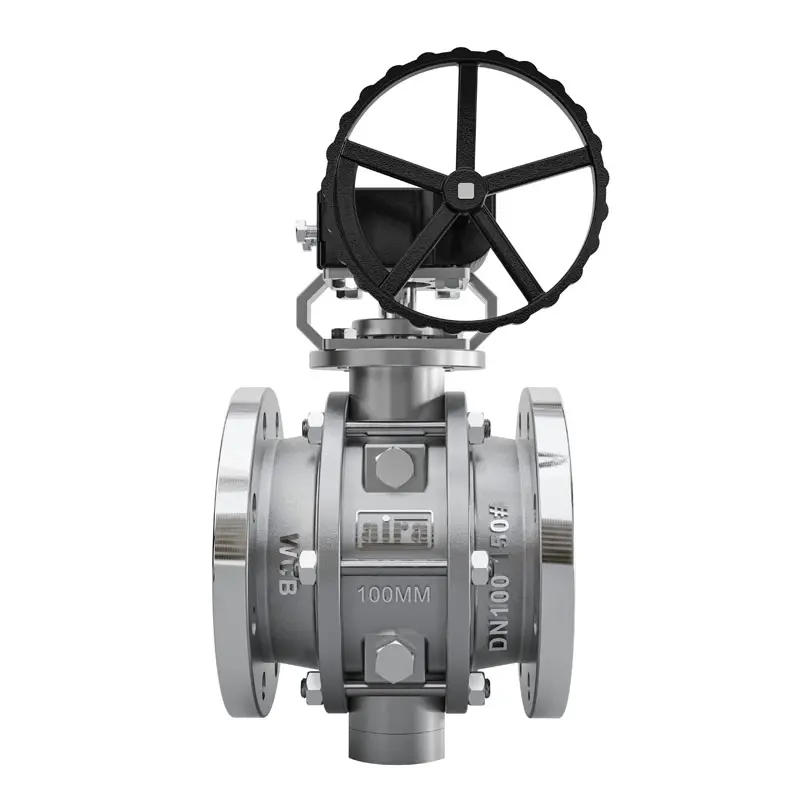

| Ball Type | Solid Trunnion Mounted Ball Valve 150#, 300#, 600# |
| Flange Drilling | ASME B16.5 Class 150#, 300#, 600# |
| Certification | Design CE Approved, POD, SIL 3, Fire Safe, API 6D, IBR |
1- Most Popular & Reliable Valve For Isolation & Shut Down Application.
2- Structure : 2 Piece & 3 Piece Bolted Body, Connector & Bonnet.
3- Block & Bleed / Double Block & Bleed Function.
4- Inherently No Pressure Drop.
5- Locking Provision & Position Of Obturator.
6- Stem Extension.
7- Lifting Lugs.
8- QSL-2 / QSL-3 / QSL-3G / QSL-4 / QSL-4G.
