| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B16.10 |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Size Range | 1/2″ to 4″ Flanged |
| Temperature Range | -50°C to 300°C for Soft Seated Valves. Contact Works for Special Requirements |
| Ball Material | CF8, CF8M, WCB + ENP, Hast Alloy, Duplex, Monel, CF3M |
| Ball Type | Solid |
| Flange Drilling | ASME B16.5 Class 150#/300#/Din/Jis |
| Leakage Class | ISO 5208 Class VI / FCI – 70-2 / ASME B16.104 (Bubble Tight Shutoff) |
| End Connection | ISO 7-1 for BSPT/BSP, ASME B1.201 for NPT for S/E, ASME 16.11 for Socket Weld |
| Pressure Class | 150#, 300# |
| Media | Air / Water / Oil & Gas |
| Body Material | CF8, CF8M, CF3M, SS 304L, WCB, Duplex, Hast Alloy, Monel |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Seat Material | PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, Nylon, Devlon, PEEK |
| Certification | Design CE Approved, POD Approved |

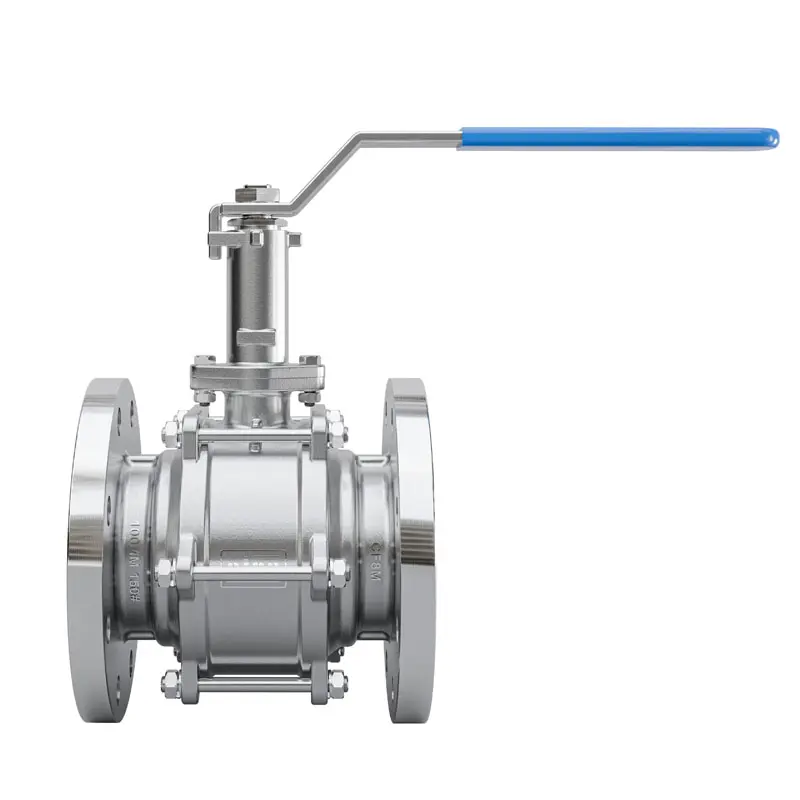

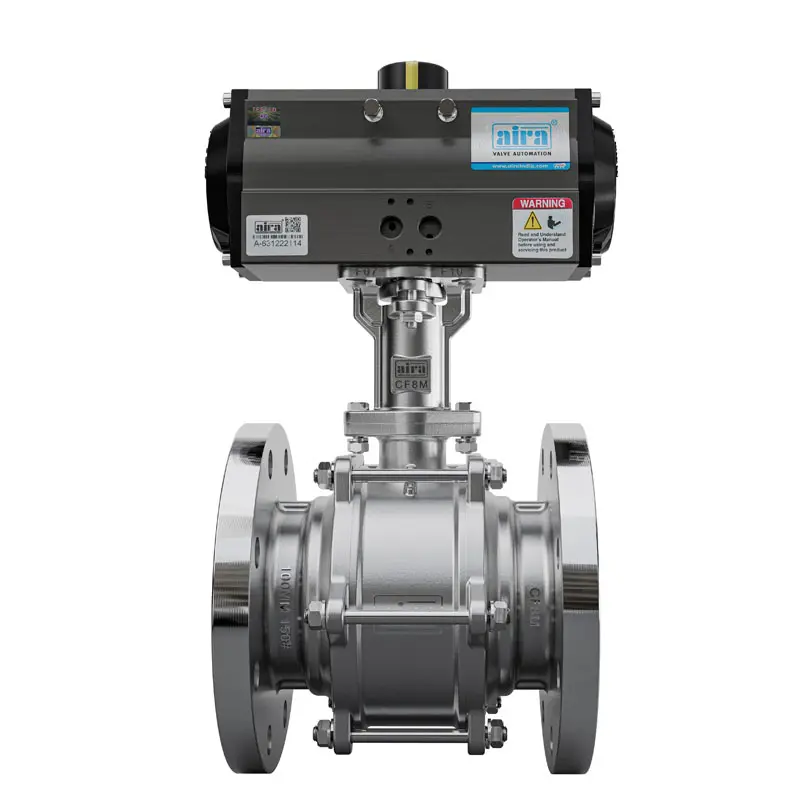

1 – Three Types Of Extension Bonnet Lengths Available To Optimize The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid.
2 – Chevron Seal Design Minimizes Leakage After Thousand Of Cycles.
3 – Low Operating Torque For Smooth Operations.
4 – Fire Safe Design Available For Flammable Applications.
5 – Fugitive Emissions Control For Flammable And Non-flammable Applications.
6 – Best For Cryogenic Application.
