| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B 16.10 / BS EN ISO 17292 |
| Inspection and Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Size Range | 1/2″ to 8″ Flanged |
| Pressure Class | 150# |
| Body Material | CAST IRON (CI), DUCTILE IRON (DI), S.G. IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Seat Material | PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Leakage Class | ISO 5208 Class VI / FCI – 70 – 2 / ASME B 16, 16.104 (Bubble Tight Shut Off) |
| End Connection | ISO 7-1 for BSPT / BSP / ASME B 1.201 for NPT for S/E ASME 16.11 for Socket Weld |
| Temperature Range | -50°C to 300°C for Soft Seated Valves. Contact Works for Special Requirements |
| Media | Air / Water / Oil & Gas |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Ball Type | Hollow & Solid |
| Flange Drilling | ASME B 16.5 Class 150# / 300# / DIN / JIS |
| Certification | Design CE Approved, POD |

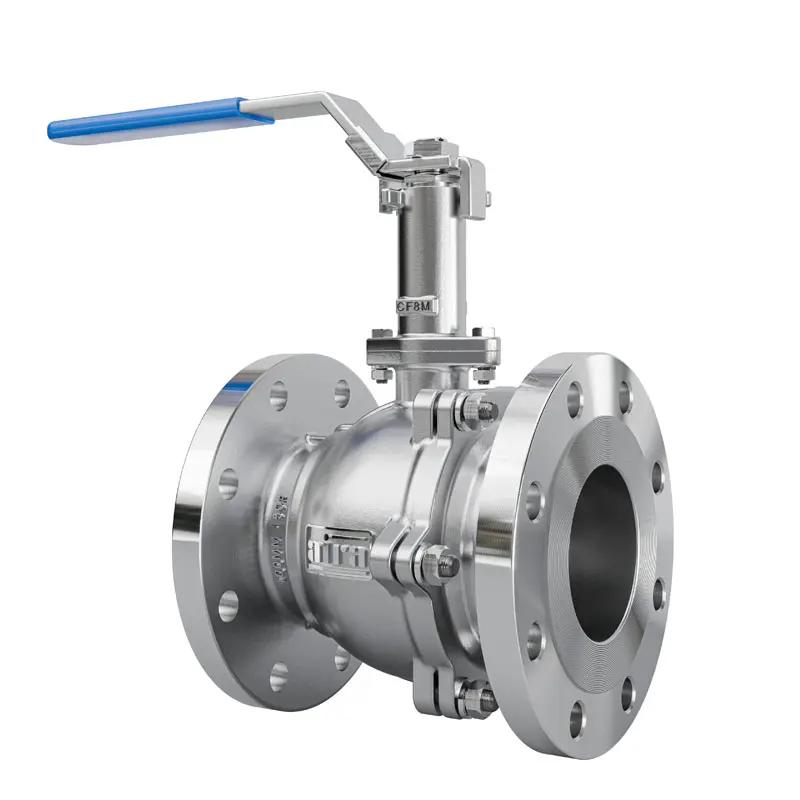

Thrice Types Of Extension Bonnet Lenghts Available To Optimize
The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid, Cavity Pressure Self Relief Construction In Valve, Cheuron Seal Design Minimizes Leakage After Thousand of Cycles, Low Operating Torque For Smooth Operations, Fire Safe Design Available For Flammable Applications, Fugitive Emissions Control For Flammable And Non-flammable Applications.
