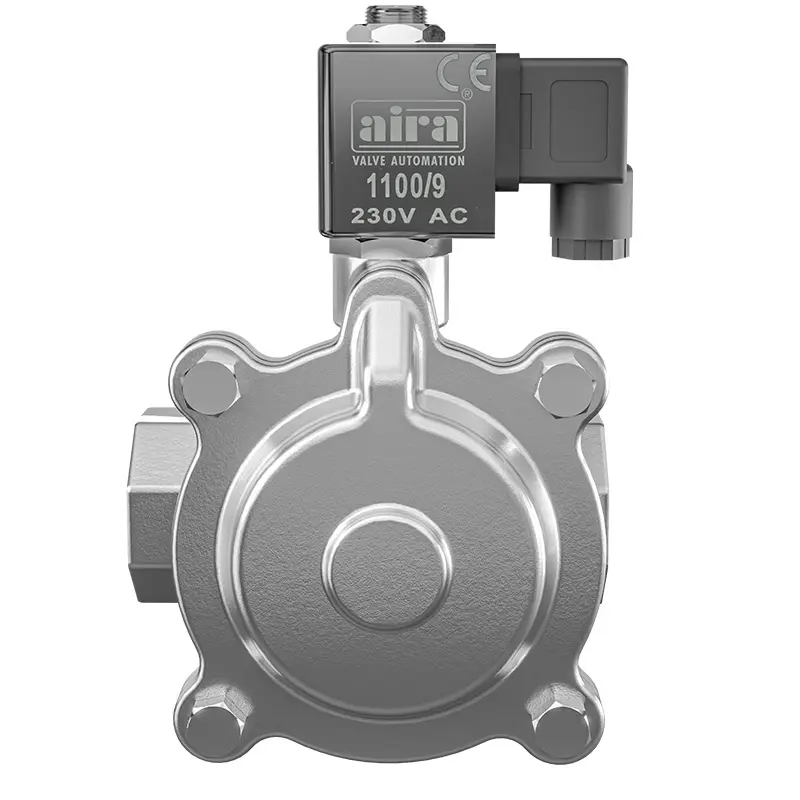

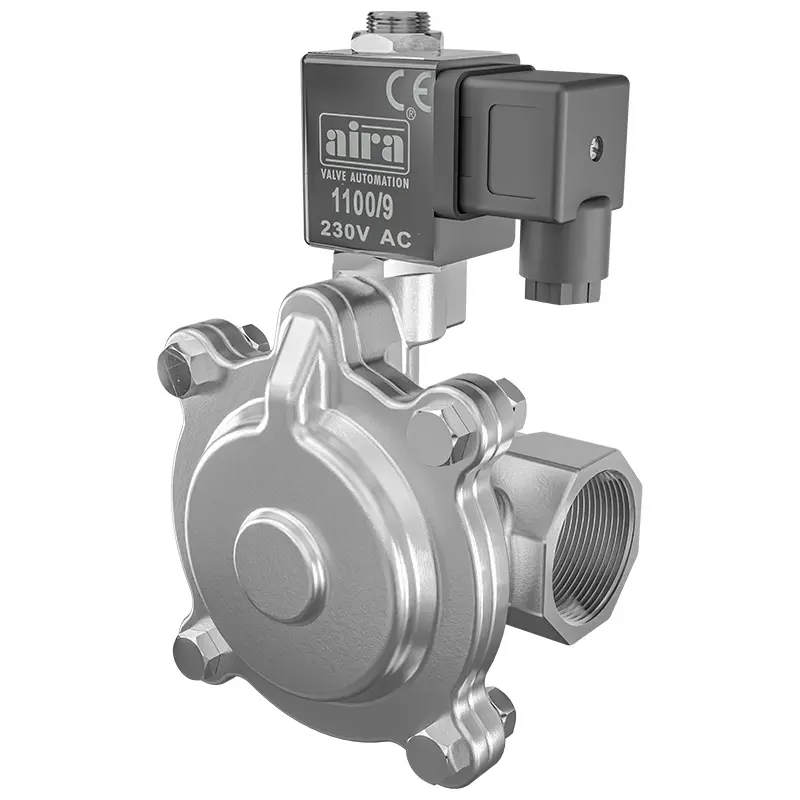

2-2 Way Pilot Diaphragm Solenoid Valve

Specification	Details
End Connection	Screwed
Size Range	1/2″ To 6″
Temperature Range	-5°C To 85°C (Up to 120°C On Request)
Pressure Class	0.5 To 10 BAR
Media	Air, Water, Oil, Gas & Chemical
Body Material	CF8, CF3M, CF8M
Seat Material	NBR, Viton
Certification	CE

Specification

Details

End Connection

Screwed

Size Range

1/2″ To 6″

Temperature Range

-5°C To 85°C (Up to 120°C On Request)

Pressure Class

0.5 To 10 BAR

Media

Air, Water, Oil, Gas & Chemical

Body Material

CF8, CF3M, CF8M

Seat Material

NBR, Viton

Certification

Features & Benefits

“aira” Euro Automation is a prominent valve manufacturer in India and we, at Aira Euro, have a wide range of industrial valves including Diaphragm Solenoid Valves and we boast of providing quality products with low maintenance.In this ISD model, Solenoid Valve Diaphragm is made from Nitrile and the body is made from CF8 / CF8M material. It is available in ¼” to 6” sizes with the Screwed end / Flanged End 150# class/tri-clover End Connections. It is made to sustain temperatures from -5°C to 85°C (can lead up to 120°C on demand) and 0.5 to 10 BAR pressure. Solenoid plays a very important role in this product and hence it is searched mostly by the name of the solenoid.The Solenoid coil voltages are 12V, 24V, 48V, 110V, 230V AC/DC, and “F” class Coil Insulation with IP 67 Coil Encloser. This valve comes as a normally open and normally closed position valve. Air, Water, Light oil, Gas, Light Chemicals, etc are the medias suitable for this valve.
